Tech specs

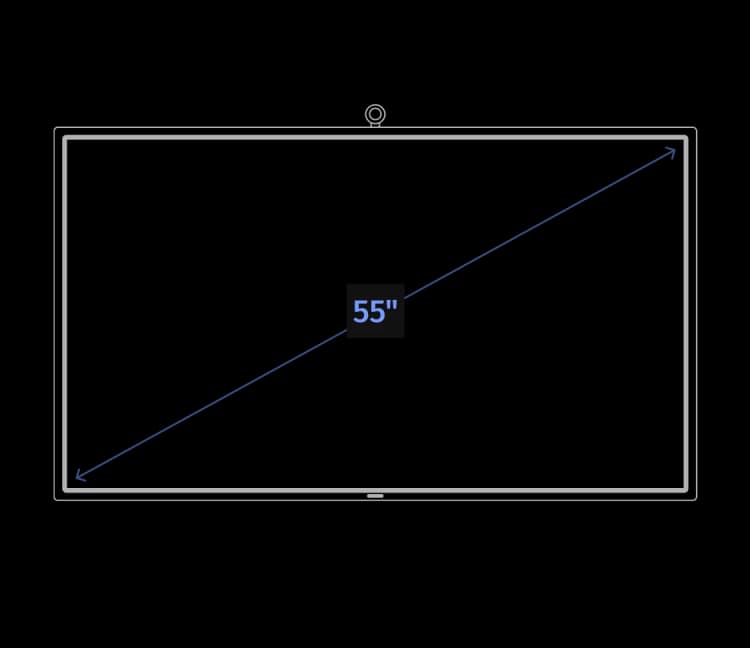

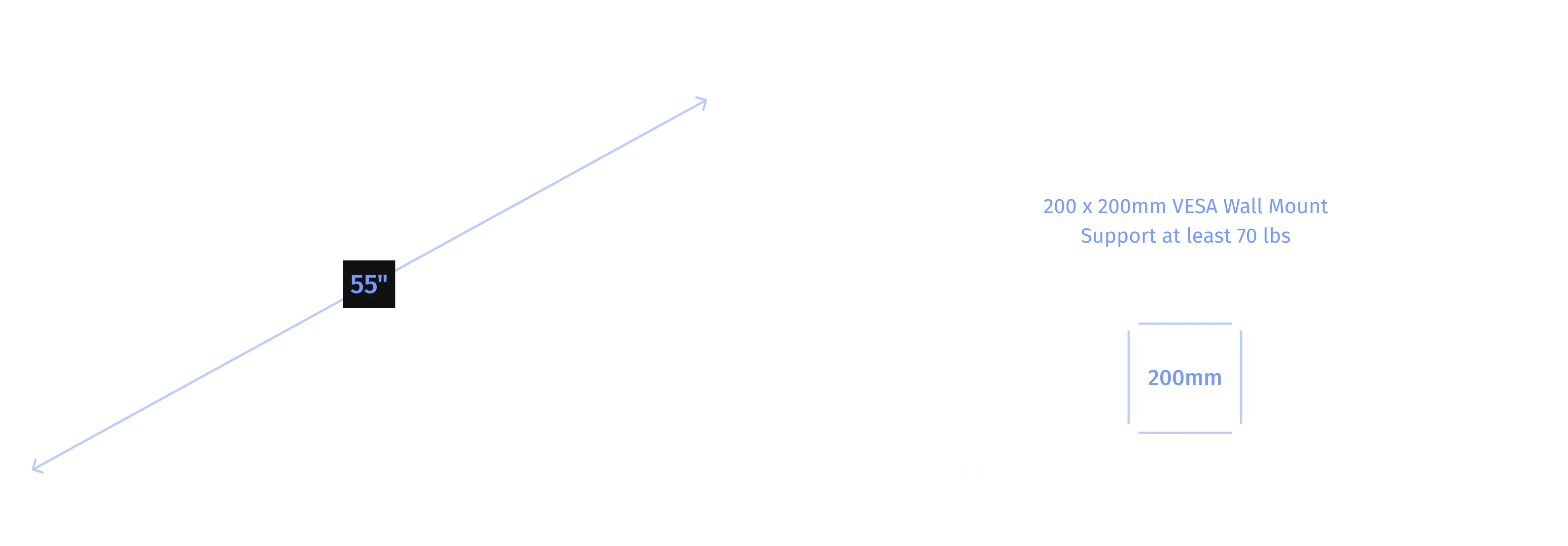

Dimensions
Product: 50.7 (W) x 29.3 (H) x 3.0 (D) inPackage: 55.9 (W) x 34.5 (H) x 7.5 (D) inWeight
Product Weight: 50.7 lbGross Weight: 64.6 lbResolution
3840 x 2160 (4K) @ 60HzDisplay
16:9 aspect ratio10-bit color depthAnti-glare0.315mm x 0.315mm pixel pitch4500:1 contrast ratioBrightness: Typ 350cd/㎡; min 300cd/㎡6.5ms response time72% NTSC178° (H) / 178° (V) viewing angleCompute
Arm RK3588 Processor8-core 64-bit2.4GHz frequency8GB DDR4128GB EMMCOperating System
VibeOS (Based on Chrome OS)Wireless
Wi-Fi 6: IEEE 802.11 a/b/g/n/ac/ax compatibleBluetooth®️ Wireless 5.2 technologyTouch
Infrared multi-touch technology20 simultaneous touch pointsResponse time: < 8msRefresh rate: 130HzMinimum identifiable object 2mmWriting height: 1.5mmPen gap 25mm(diameter 3mm)Protection tempered glass: 3mmTouch Accuracy ≤ ± 1mmWriting points 5*2mmConnections

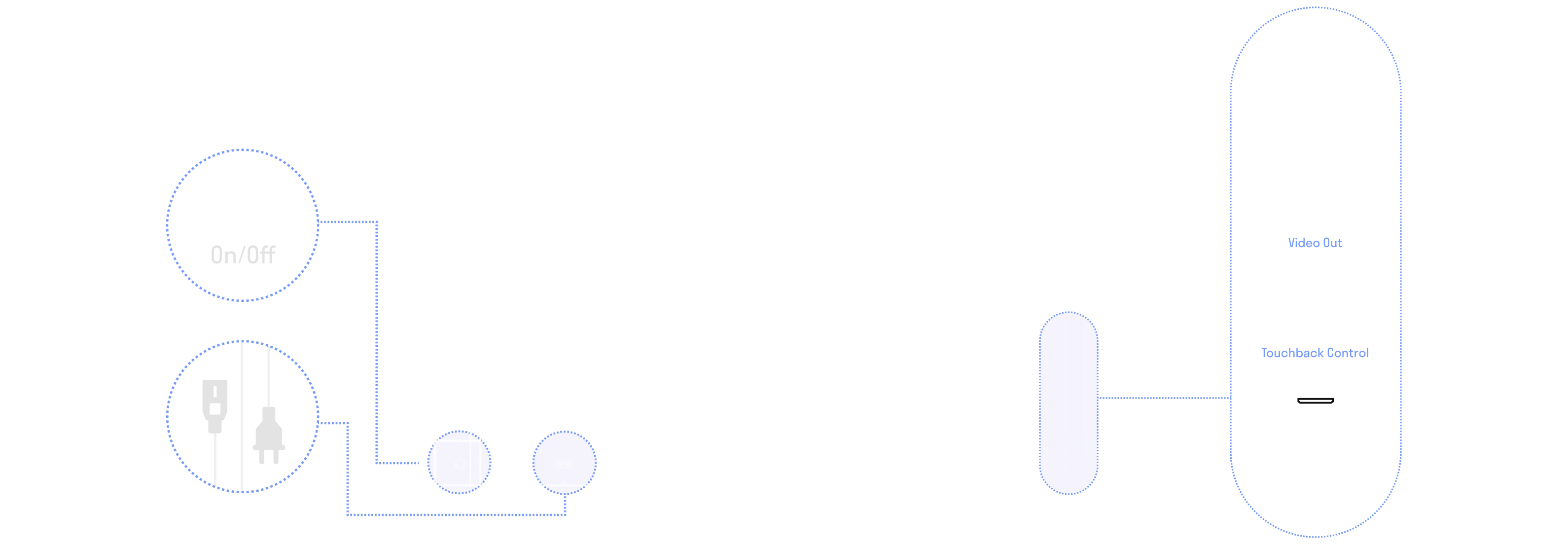

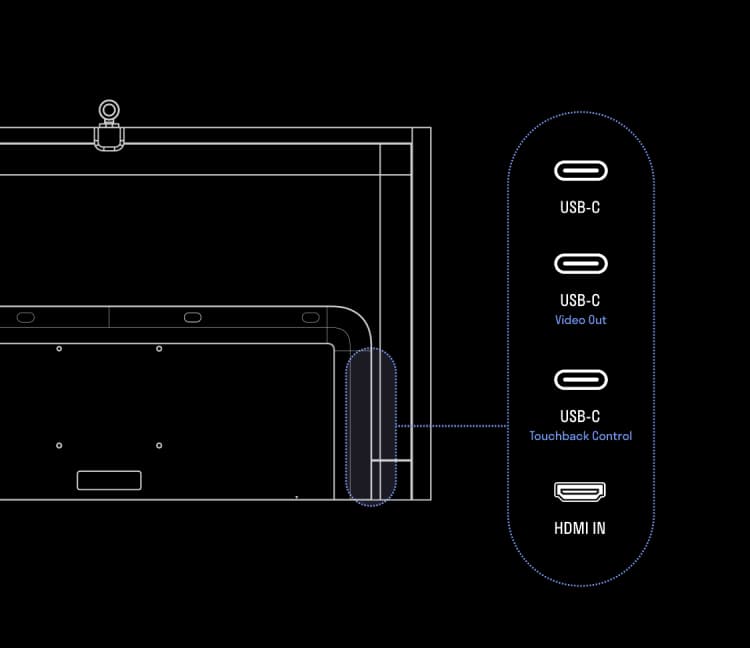

① USB-C: SuperSpeed USB3.0② USB-C: SuperSpeed USB3.0/DisplayPort out③ USB-C DisplayPort in for touchback control④ HDMI-in: HDMI 2.0Power

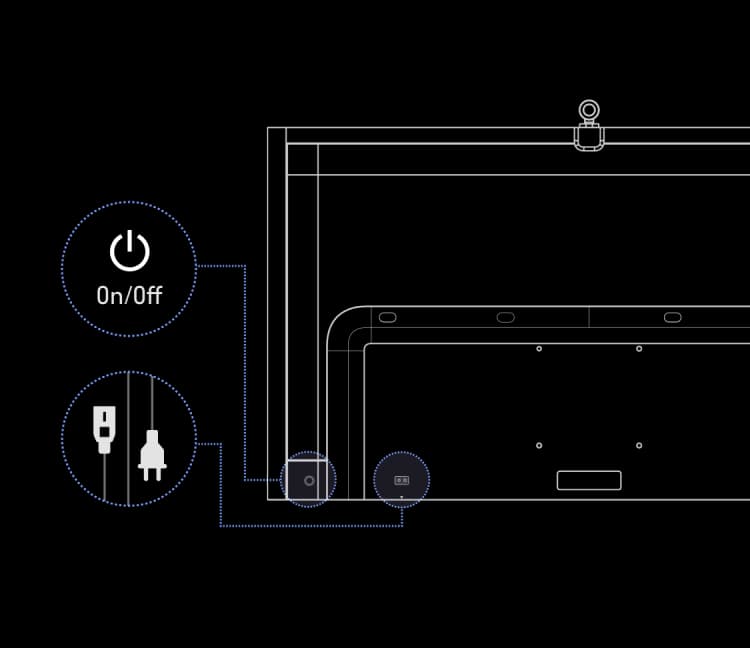

AC 100-240V, 50-60Hz power source≤ 200W Max power consumption≤ 0.5W Standby power consumptionCamera (optional)
Image Sensor: Sony CMOS, 8.42MP (4K) 1/2.8 inchSensor Resolution: 3840(H) X 2160 (V)Frames Per Second: 30 fpsIR Filter: 400-700nmDigital Zoom: x4Anti-Flicker Frequency: 50/60 HzVideo Format: M-JPEG, 4K@30fps, 1080P@30fps, 720P@30fpsInterface: USB2.0 Type-CLens: 2G5PFocal range: ~(30cm-5m), Fixed focus on at 1mField of View: DFOV: 117.1°, FOV: 108.5°, VFOV: 74.7°Mics: 6 omni-directional micsSound pick up range: 5mColor: SilverDimensions: 40x67x75 (mm)Weight: 110gPower: 5V-900mA (USB-Powered)Audio sampling rate: 48KHzVideo: Manual mode, Auto-framing mode, and Gallery mode(focus up to 4 people)Audio: Beamforming, A.I. Echo-cancellation, and A.I. Noise reductionTap (optional)
Product dimensions: 157mm*63mm*13mmTransmission distance: 15mTouchback: supportStand (optional)
Product size: 50.0 (W) x 56.5 (H) x 26.4 (D) inPackage size: 46.1 (W) x 29.4 (H) x 8.5 (D) inProduct weight: 25.4 lbInstallation manualWall mount (optional)
200mm x 200mm VESA mountSupport at least 70.0 lbWarranty
1-year hardware warrantyTech specs for Vibe Board S1
7.7 MB
Download
